Basic Info.

Model NO.	HJS32
Warranty	12 Months
Customized	Customized
Advantage	Use Widely
Condition	New
Nominal Force 400 T	Weight 16t
Transport Package	Wooden Case
Specification	ISO9001;
Trademark	Shengli
Origin	China
HS Code	8462919000
Production Capacity	500--800PCS/Year

Product Description

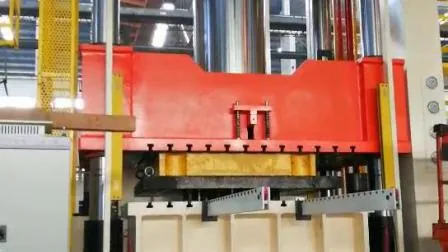

HJS32-400 Star Products Four-Column Forming Hydraulic Press
The series is designed for general-purposes suitable to a wide variety of plastic material press-works such as bending, flanging, sheet metal drawing, and also for straightening and press-fit in wide applications of plastic, rubber, electric-motor, automobile, ceramic ware, metal product, abrasive material, fireproof material, powder and metallurgy industries. If you intend to use it for blanking and punching, a buffer device should be ordered in addition to eliminate or mitigate impact and noise.Loaded with a stand-alone hydraulic station and electrical cabinet, optional of three operating modes of adjust (inch), manual and semi-automatic.Working pressure, speed and strokes of quick and slow descent can be regulated in the specified range to meet the required process. Providing two controls of preset stroke and preset pressure, if you choose the preset pressure, the press executes hold-pressure and delay, auto. RAM return after pressing action, and providing hold-pressure with motor run or motor stop as option.

Item			Unit	HJS32-400
Nominal Force			kN	4000
Eject Force			kN	630
Return Force			kN	350
Max. Working Pressure			Mpa	25
Ram Stroke			mm	800
Eject Stroke			mm	300
Daylight			mm	1250
Ram Speed	Quick descent		150	150
	Work		mm/s	7.5~18
	Return		mm/s	210
Eject Speed	Eject		55	60
	Retreat		mm/s	200
Opening Table Size	Left-to-right		1260	3500
	Front-to-back		mm	1300
Table Height above Floor			mm	710
Overall Size		Left-to-right	2840	11085
		Front-to-back	2000	2540
		Height above Floor	4150	4640
Motor Power			kW	30
