Cdy100 Single Column C Frame Type 100 Ton Electric Hydraulic Press

Package Size 100.00cm * 100.00cm * 100.00cm Package Gross Weight 10000.000kg CDY100 Single Column C Frame Type 100 Ton E

Send your inquiry

DESCRIPTION

Basic Info.

Model NO.	CDY100
Certification	CCC, ISO9001, CE
Condition	New
Customized	Customized
Warranty	12 Months
Delivery Time	1 Month
Key Word	Hydraulic Press Machine
MOQ	1 Set
OEM	Available
Type 1	C Frame Type
Color	Customized
Machine Color	Customized
Usage	for Mold Forging Stretching
Motor Power	5.5kw
RAM Stroke	350mm
Voltage	380V
Worktable Size	780X640mm
Max.Pressure	100 Tons
Hydraulic Pressure	30 MPa
Name	Cdy100 Single Column C Frame Type 100 Ton Electric
Transport Package	Iron Pallet
Specification	100 tons
Trademark	BETA
Origin	Shandong, China
HS Code	8477590000
Production Capacity	100 Sets Per Month

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 100.00cm Package Gross Weight 10000.000kg

Product Description

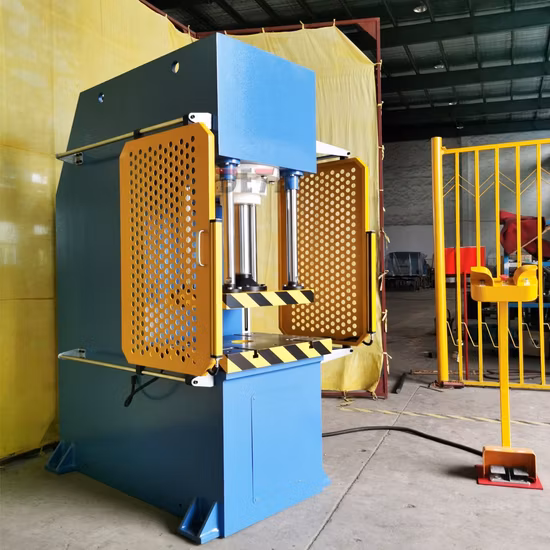

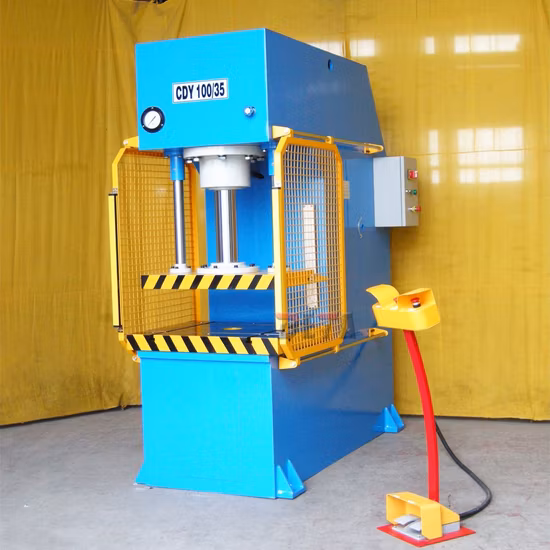

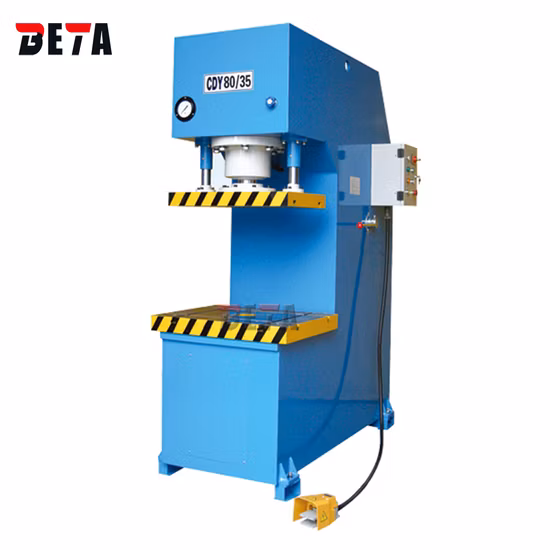

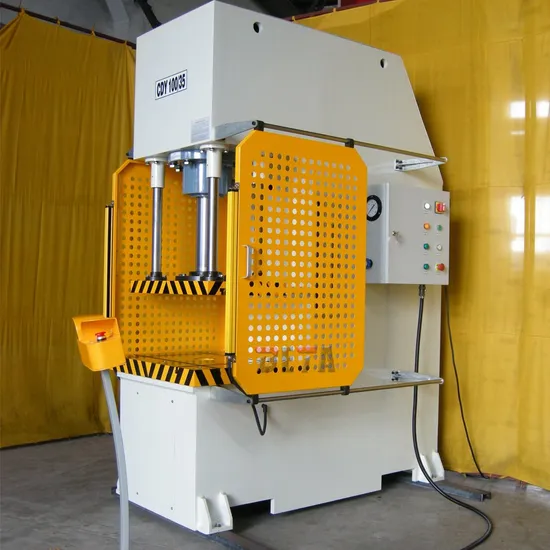

CDY100 Single Column C Frame Type 100 Ton Electric Hydraulic Press

Features:

1. It adopts a steel frame structure as a whole and a mobile protective netx. Grating protection is optional.

2. The good quality is based on exquisite manufacturing process and durable parts and components.

3. Double action cylinder, which is the original component of sound hydraulic system, can stand wear and tear.

4. Equipped with a soft starter, a two-hand-controlled footswitch and a manual stroke controller to control upward and downward movement of the piston rod, which is very safe and convenient.

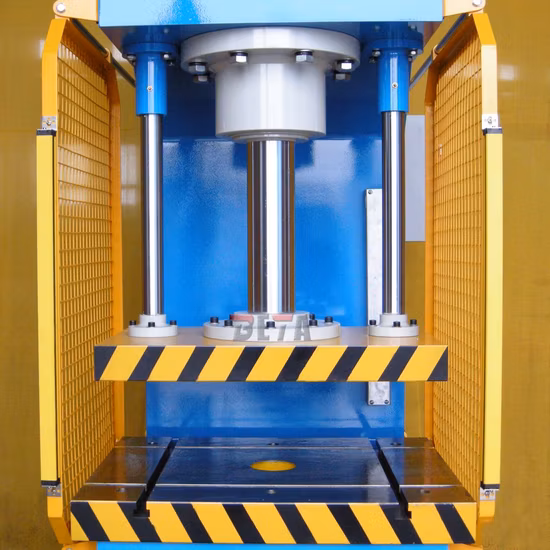

5. Equipped with T-slot for both upper and lower plate to install kinds of moulds.

6. Suitable for mold forging, stretching in industrial manufacturing.

7. Can choose pillar or slideway type according to different accuracy requirements.

Cdy100 Single Column C Frame Type 100 Ton Electric Hydraulic Press
